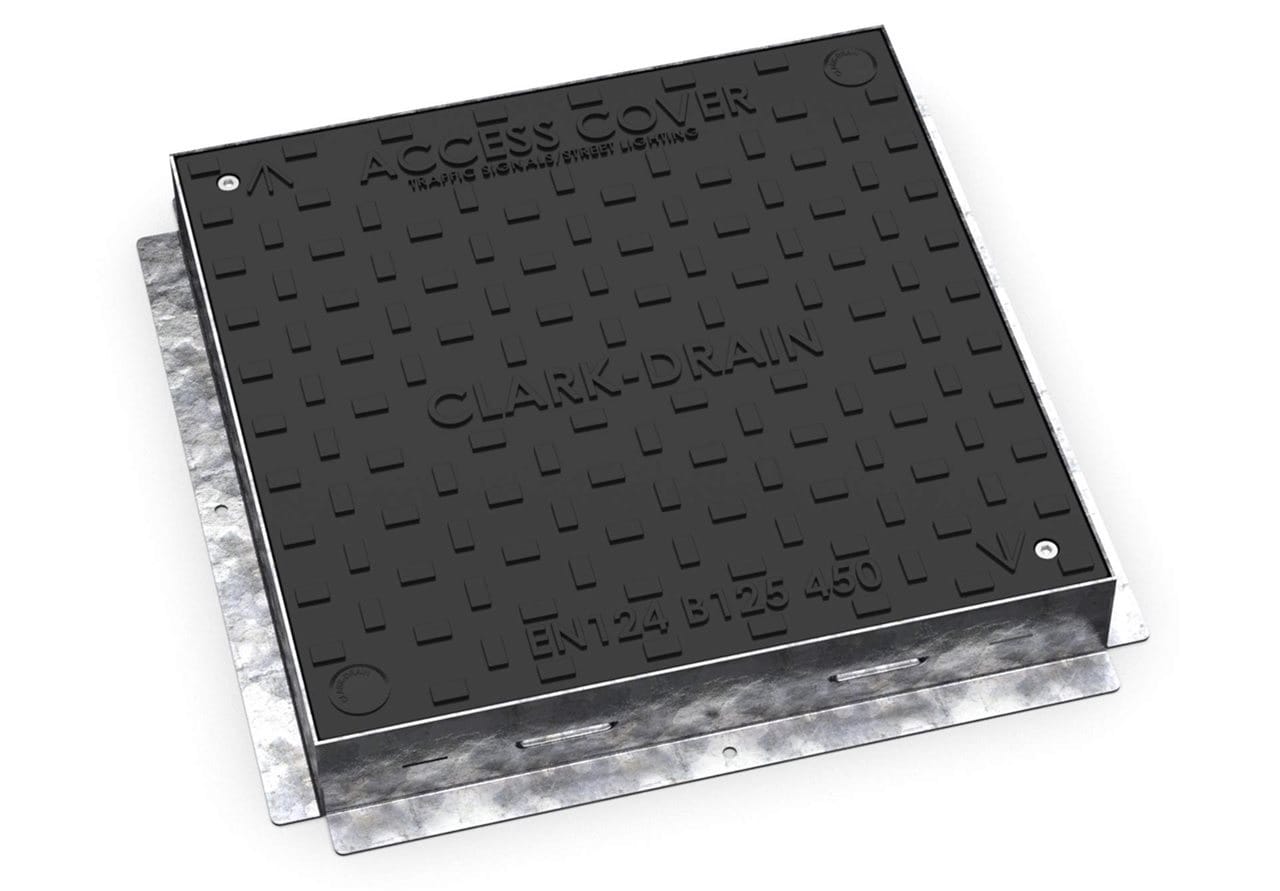

INTEGRAL LIFTING KEYHOLES (TO SUIT CD 553 OR CD 553L LIFTING KEYS)
FULLY GALVANISED STEEL FRAME WITH 70MM INSET DEPTH TO SUIT TARMAC, CONCRETE OR PAVED AREAS AND GRASS VERGES
NON-FERROUS COMPOSITE COVER IS RESISTANT TO CHEMICALS, DEFORMATION, RUST AND CORROSION
SUPPLIED FITTED WITH LOCKING SCREWS
FRAME SKIRT WITH FIXING HOLES TO ATTACH FRAME TO CHAMBER
BADGED “TRAFFIC SIGNALS/STREET LIGHTING”
SPECIFICATIONS
Applications
Street Lighting , Traffic Signals
Locking
Locking screws.
Loading
B125
Cover
Solid Top
Lifting Keys
CD 553, CD 553L
Material
Composite Cover & Galvanised Steel Frame
Internal Dimensions
600 (L) x 600 (W) x 70 (D)
External Dimensions
701.5 (L) x 701.5 (W) x 110 (D)
Clear Opening
600 x 600
