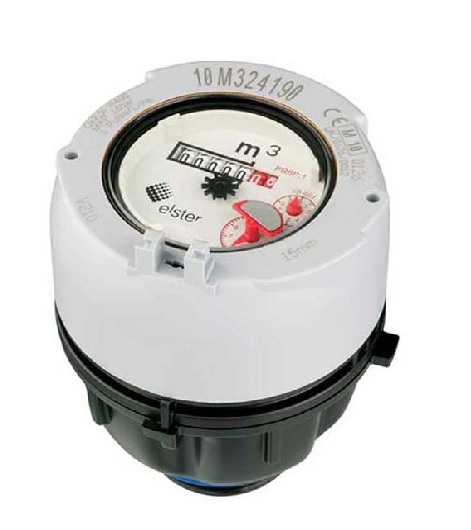

The V210 volumetric water meter is designed to
be installed into a manifolds, boundary and meter
boxes that have coaxial concentric connections. It
incorporates many advanced design features to
improve metering accuracy across a wide range
of flow rates, from dripping taps to water for
showers, baths and washing machines.
Optional retro-fit pulse & M-Bus modules are
available for connection to data-loggers, BMS
systems and remote displays.
Pressure & Temperature
Maximum pressure:-
16 bar
Maximum temperature:-
30oC
Approvals, Features & Benefits
• MID 2004/22/EC
• EN14154, OIML R49 & ISO4064
• WRAS approved product
• Tamper resistant construction
• Detection of very low flows
• Optional communication module outputs
