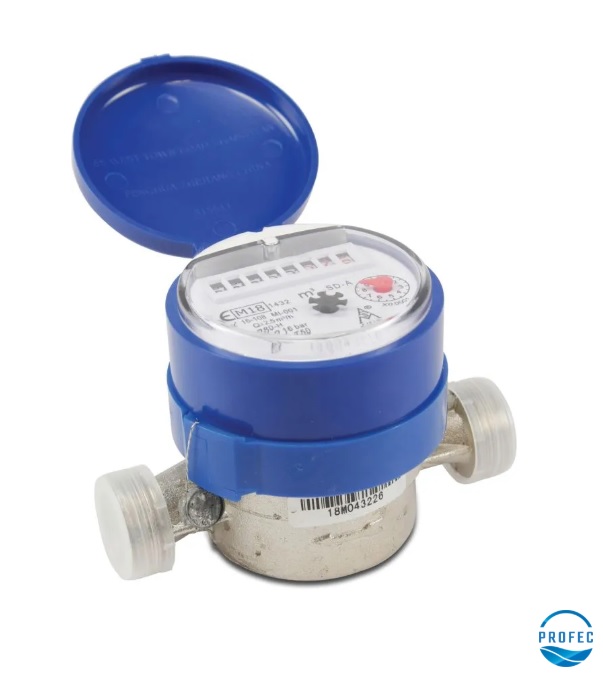

Profec Water meter brass nickel plated 3/4″ male thread 16bar

Single Jet Dry Type Vane Wheel Water Meter
· It is a single jet super dry water meter for residential
application in sizes 15mm-20mm for cold water.
Features
· Magnetic drive, lower transmission resistance
· Magnetic shield, for external magnetic field protection
· Sealed dry register ensures log time clear reading
· Internal regulating device
Standards Compliance
· Directive 2014/32/EU on measuring instruments;
· the European Standard EN14154+A1+A2: Water Meter;
· the International Organization of Legal Metrology OIML R-49: 2013(E)
Optional Features
· Several lengths and connections available on request
· Non return Valve
· Reed switch option
Working Conditions
· Water temperature: ≤50℃ for cold water meter
· Water pressure:
≤1.6MPa(16bars)
Accessories
· 2pcs couplings, 2pcs coupling nuts and 2pcs washers.
Maximum Permissible Error
· In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%.
· In the upper zone from Q2 inclusive up to and including Q4 is ±2%
